D365 Finance and Operations. SysOperation Framework and Data Contracts.

Overview

The data contract is a class that is the parameter for the entry point to the class that performs the process. The SysOperation framework automatically creates a dialog from the data contract, which will use the EDTs in the contract to provide the label, and even drop-down lists based on the table reference on the EDT.

User interface

You can associate the data contract with the user dialog with the SysOperationContractProcessingAttribute

[
DataContractAttribute,
SysOperationAlwaysInitializeAttribute,
SysOperationContractProcessingAttribute(classStr(CustRecurrenceInvoiceUIBuilder))
]
class CustRecurrenceInvoiceDataContract implements SysOperationInitializable,SysOperationValidatable

or with the SysOperationContractProcessing

[
DataContractAttribute,
SysOperationAlwaysInitializeAttribute,
SysOperationContractProcessing(classstr(CustRecurrenceInvoiceUIBuilder)
]

When you add the parm methods to the contract class the field will be added to the user dialog.

[
DataMemberAttribute,
SysOperationLabelAttribute(literalstr("@SYS318853")),
SysOperationHelpTextAttribute(literalstr("@SYS318854")),
SysOperationDisplayOrderAttribute('1')
]
public TransDate parmFromDate(TransDate _fromDate = fromDate)
{
    fromDate = _fromDate;
    return fromDate;
}

[
DataMemberAttribute,
SysOperationGroupMemberAttribute(identifierStr(Statements)),
SysOperationControlVisibilityAttribute(false)
]
public RefRecID parmWorkOrderLineRecID(RefRecID   _lineRecID = lineRecID)
{
    lineRecID = _lineRecID;
    return lineRecID;
}

From a technical perspective, data-contracts can implement different interface classes.

Class interfaces

SysOperationInitializable

The main goal of this interface is to implement the contract initialization. If you want to initialize the default parameters in run time before the UI interface is displayed to the user, you need to implement the SysOperationInitializable class.

class EAMWorkOrderAddNoteDescriptionContract implements SysOperationInitializable

In this case method "initialize" will be available and can be rewritten. This method is used to initialize variables within the data contract. However, this method is called if no user usage data is found.

public void initialize()
{
    this.parmFromDate(DateTimeUtil::getSystemDate());
}

In case the method "initialize" must be called at any time you have to add the SysOperationAlwaysInitializeAttribute to your contract.

[
DataContractAttribute,
SysOperationAlwaysInitializeAttribute,
SysOperationContractProcessingAttribute(classStr(CustRecurrenceInvoiceUIBuilder))
]
class CustRecurrenceInvoiceDataContract

In addition, if you want to clean up the field value on the dialog, it is required to add the same SysOperationAlwaysInitializeAttribute attribute to the desired method:

[
DataMemberAttribute,
SysOperationAlwaysInitializeAttribute,
SysOperationLabelAttribute(literalstr("@SYS318853")),
SysOperationHelpTextAttribute(literalstr("@SYS318854")),
SysOperationDisplayOrderAttribute('1')
]
public TransDate parmFromDate(TransDate _fromDate = fromDate)
{
    fromDate = _fromDate;
    return fromDate;
}


SysOperationValidatable

The main goal of the SysOperationValidatable interface is to implement the contract validation. It allows you to validate the values provided for the data contract. For example, when users enter the field value on the dialog and press the “OK” button the "validate" method of the data contract will be called.

From a code perspective, its implementation looks like:

class CustRecurrenceInvoiceDataContract implements SysOperationValidatable

In addition, you heed to override the "validate" method:

/// <summary>
/// Determines whether the parameters are valid.
/// </summary>
/// <returns>
/// True when the parameters are valid; otherwise, false.
/// </returns>
public boolean validate()
{
    boolean ok = true;

    // add your validation here

    return ok;
}


SysPackable

The SysPackable interface implementation forces the data contract class to create the "pack" and "unpack" methods which means that we can do serialization on it, like pack and unpack the variables defined in the #CurrentList for the #CurrentVersion macro.

class EAMWorkOrderAddNoteDescriptionContract implements SysPackable
{
    Int   dummy;

    #define.CurrentVersion(1)
    #localmacro.CurrentList
        dummy
    #endmacro
}

public container pack()
{
    return [#CurrentVersion, #CurrentList];
}

public boolean unpack(container _packedClass)
{
    Version version = RunBase::getVersion(_packedClass);
    boolean ret = true;

    switch (version)
    {
        case #CurrentVersion:
            [version, #CurrentList] = _packedClass;
            break;

        default:
            ret = false;
    }

    return ret;
}

Visual Studio 2022 requirements to upgrade Tier-1 environments (CHE) to version 10.0.44.

If you are going to upgrade your developer cloud-hosted (OneBox) environments to version 10.0.44, you may face an issue at step 27. The issue is related to Visual Studio 2022.

Executing step: 27
Update script for service model: DevToolsService on machine: localhost update DevTools service Catastrophic failure in extension loading: The method or operation is not implemented. with stack:
...........................
The step failed

OR
Executing step: 27
Update script for service model: DevToolsService on machine: localhost update DevTools service
Cannot convert value "17.14.6 (June 2025)" to type "System.Version". Error: "Input string was not in a correct format."
The step failed

A new version of Visual Studio 2022 has been released to address this issue. If you are currently using version 17.14.2 or earlier, please update to version 17.7 or later. Once you have updated, try/retry the update process again.

D365 SCM. Deprecation of inventory transactions to track on-hand inventory in internal warehouse operations.

As you probably know, approximately in one year after the release of version 10.0.41, support for inventory transactions support for internal warehouse operations will be removed and all customers will be required to move to warehouse-specific inventory transactions for tracking on-hand inventory for internal warehouse operations.

It seems that the inventory transaction scenarios will be deprecated in version 10.0.45 or 10.0.46. There is a chance that, in one of the next versions (10.0.47 or higher), the application code related to inventory transactions for internal warehouse operations can be removed.
If you still use inventory transactions for internal warehouse operations you have time for switching to the warehouse-specific inventory transactions feature. Don’t waste time. :)

Changes to "Found" cache type in version 10.0.44

It seems that Microsoft will release a fix for a cache performance in version 10.0.44. (https://fix.lcs.dynamics.com/Issue/Details/?bugId=976894&dbType=3)

Based on the description of the fix, currently, any insert operation is flushing everything from the found cache, across all AOSes. When a record is inserted into another AOS, then the cache is flushed. In fact, it means that each AOS has to recache the data.

As far as I know, today any update/insert/delete triggers an update in SysCacheFlush, forcing other AOSes to flush whatever data they have cached.

I guess, the fix is to stop flushing for inserts on Found cached tables. Therefore, an insert into a table where found data is cached will not require any cache invalidation (flushing).

I think, the fix can resolve the issue, when the data should be cached, but the kernel is performing queries towards the database, while the expectation is that the data should be fetched from cache.
In addition, the fix can bring performance value, since there are some tables in the system that use the "found" cache type, which are used most often, for example - SalesTable, SalesLine, PurchTable, PurchLine.

Tier-1(CHE) and Unified Developer Experience (UDE) environments build error: Another build is in progress.

In some cases you may face an issue with a model or project build in a Tier-1 environment.The error can be "another x++ build is currently running" or "another build is in progress".

I guess, advice on how to solve this problem can be easily found on the Internet. For example, you can restart your virtual machine or kill the build process (xppcAgent) manually and try again.

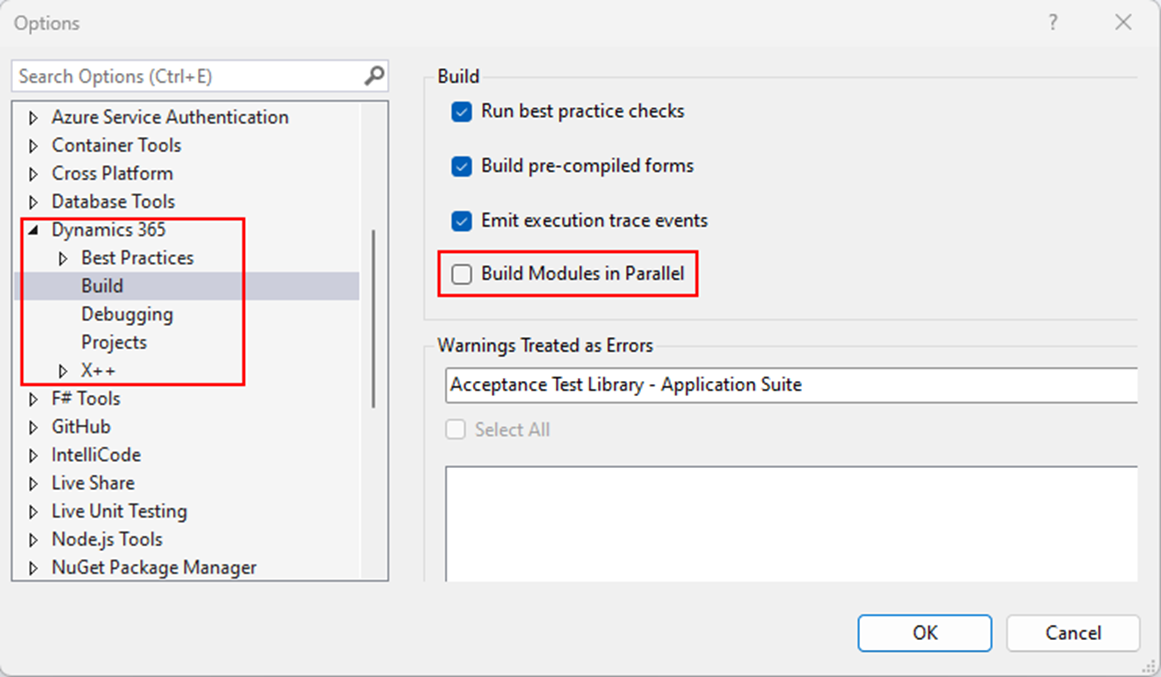

I believe it would be great to know the reason for this issue. In Visual Studio 2022, there is a setting called "Build Modules in Parallel". If it is enabled, you might constantly face the issue mentioned above.

So, it makes sense to check and deactivate this parameter in order to increase build stability in Tier-1 or Unified Developer Experience (UDE) environments.



D365 SCM warehouse mobile device development approach. Macros or constants.

As you might know there are a lot of controls and related macro commands in the WHS classes. It is not really convenient to search for macro commands in code, since they are not supported by the cross-reference feature.

In D365 Finance and Operations, there is an option that can help simplify the development of warehouse mobile flows and tracking using the existing commands. It is constants.

In my opinion, the best example of the mentioned option is the "ProcessGuideDataTypeNames" class. Inside the class you can find a lot of constants that are used in the mobile device flows.

As you can see, macros are used at the class declaration level, but with a specific reference to a value in the WHSRF macro. As a result, you can use cross-references to find all the places in the code where the constants are used.

In general, constants have the following advantages over macros:
  • You can add a documentation comment to a constant but not to the value of a macro. Eventually, the language service will pick up this comment and provide a useful information to the user.
  • A constant is known by IntelliSense.
  • A constant is cross-referenced. Therefore, you can find all references for a specific constant but not for a macro.
  • A constant is subject to access modifiers. You can use the private, protected, and public modifiers. The accessibility of macros isn't rigorously defined.
  • Constant variables have scope, whereas macros don't have scope.
  • You can see the value of a constant or a read-only variable in the debugger.
  • Full control of the type for the constant.
  • You can also define constants as variables only. The compiler will maintain the invariant so that the value can't be modified.
  • A significant effect on the performance of the compiler.
Considering all the above, I would recommend you to use constants instead of macros in general, not only in WHS mobile device flow development.

Ax 2012 data upgrade in Tier-1 development environments(CHE). A parameter cannot be found that matches parameter name “TrustServerCertificate”.

When I ran data upgrade using Data Upgrade 10.0.41 package, I faced an issue:

Executing step: 3
GlobalUpdate script for service model: AOSService on machine: localhost
perform data upgrade, sync AX database and deploy SSRS report
A parameter cannot be found that matches parameter name 'TrustServerCertificate'.
The step failed.

On the Internet, I found that there might be a problem with a version of the SQL Server PowerShell module. When I installed the latest 22.x.x version I was able to resume the process. I performed the following steps:

Within a PowerShell prompt, I ran the following command:
(Get-Command Invoke-SqlCmd).Module

In my case, I had 15.0 version.
In order to install the latest version I ran the command:
Install-Module -Name SqlServer -AllowClobber

When the process was completed, I ran the following PowerShell command to check the versions again:
Get-Module -ListAvailable SqlServer, SqlPs

As a result, I saw version 22.x.x and I was able to continue with the data upgrade using the command:
AXUpdateInstaller.exe execute -runbookid="MajorVersionDataUpgrade-runbook" -rerunstep=3

New dev tools service requirements to upgrade Tier-1 environments (CHE) to version 10.0.42 or higher.

If you are going to upgrade your developer cloud-hosted (OneBox) environments to version 10.0.42 or higher you should keep in mind that it is impossible without Visual Studio 2022 components.

If there are no Visual Studio 2022 components in your environment during the upgrade, you will see an error:

Executing step: 29
Update script for service model: DevToolsService on machine: localhost update DevTools service
The Dynamics 365 F&O Development Tools extension folder for Visual Studio was not found
The step failed.

In my opinion, there are 2 ways to solve the issue:

  • Install Visual Studio 2022 on the environment
  • Deploy a new environment with version 10.0.42 on the LCS, or if you use local machines, you can create one from the VHD with version 10.0.39 and upgrade it to 10.0.42.
You can find an official announcement here.
